Ingredients | Ingredients in the PIM Studio | Ingredient Editor

Also refer to the options in the Centric PXM™ settings section.

Attribute settings

Field	Description
Attribute type	Ingredient Editor
Enable translations for selected languages	Select the languages, if any, in which you want to name ingredient groups.

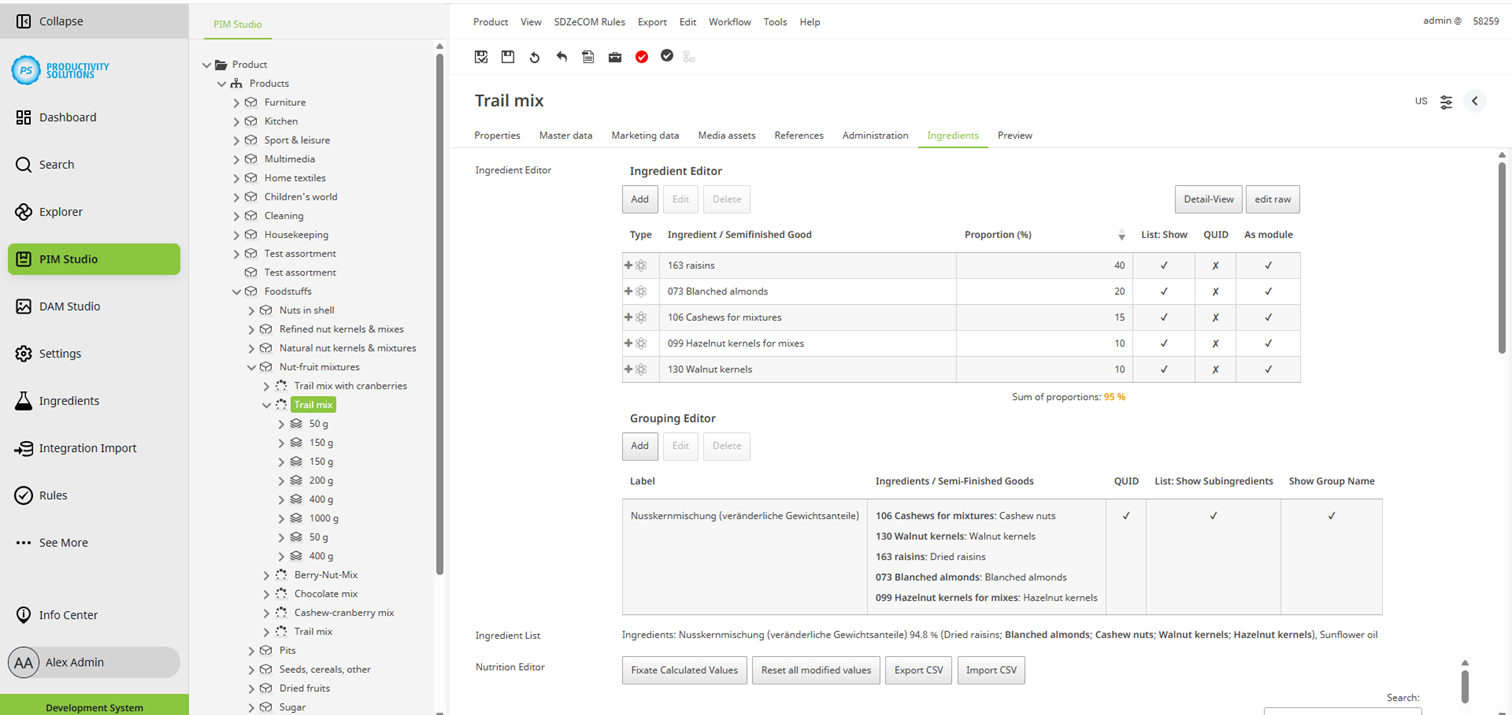

Use the three buttons to configure the ingredients.

Field	Description
+	Click on the plus symbol in the “Type” column to expand the components of the ingredient/semi-finished good.
Add	Adds another ingredient Once the sum of proportions (see below) reaches 100%, no further ingredients can be added. The warning level, i.e. the threshold value at which an object is considered to be fully maintained, can be adjusted in the settings. Default value: 97 %.
Edit	Select the table row you want to edit.
Delete	Select the table row you want to delete from the table.

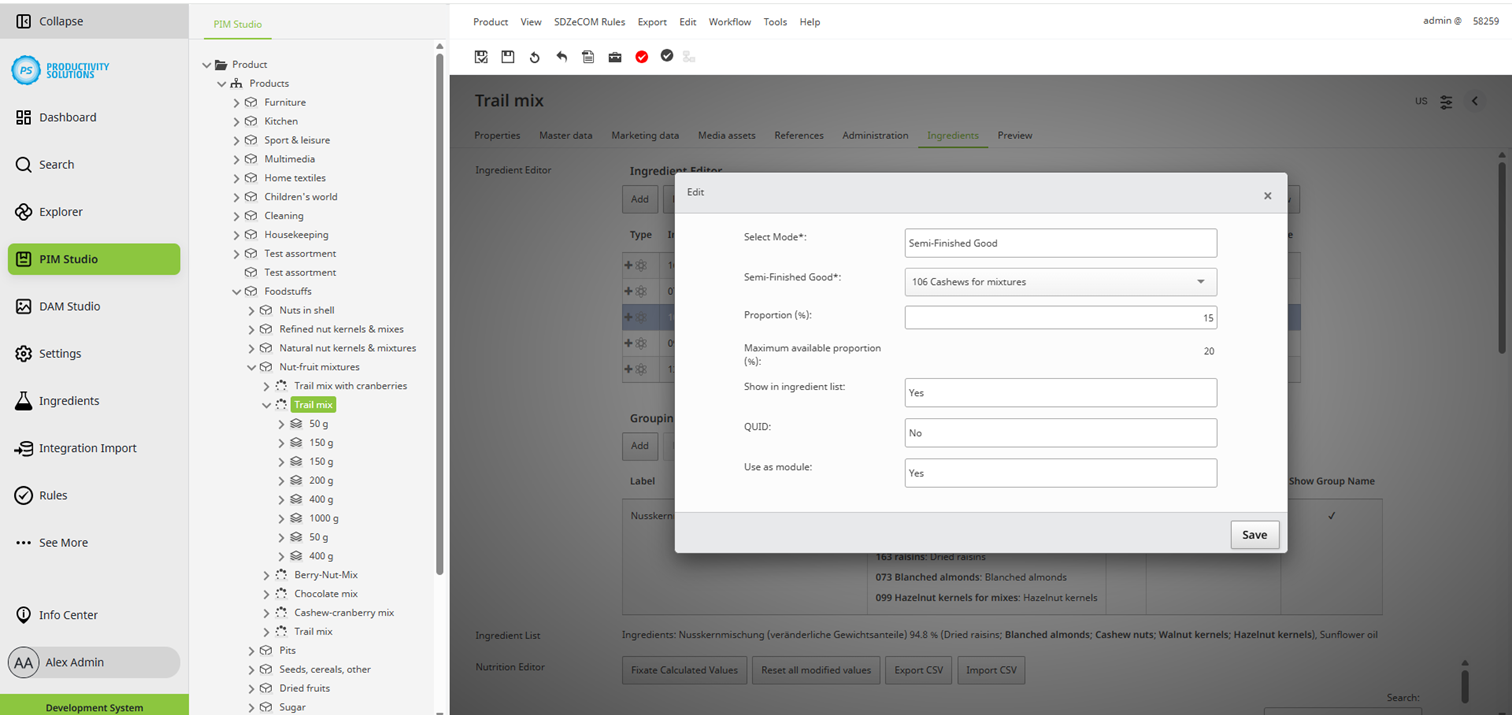

Field	Description
Select mode	Select whether you want to add an ingredient or a semi-finished good.
Semi-Finished Good	Select the ingredient/semi-finished good you want to add from the list. The ingredients and semi-finished goods must have already been created in the Ingredient Studio.
Proportion (%)	Enter the proportion of the ingredient/semi-finished product in the recipe as a percentage. The total is displayed as “Sum of proportions” below the table.
Maximum available proportionl (%)	Shows the percentage remaining to complete the recipe.
Show in ingredient list	Decide whether the ingredient/semi-finished good is to be displayed in the ingredient list.
QUID	Decide whether the percentage is to be displayed at the ingredient in the ingredient list.
Use as module	No: The ingredient/semi-finished good including its components is displayed in the ingredient list. Yes: Only the components of the ingredient/semi-finished good are displayed in the ingredient list. If you work with ingredient groupings, this option has no effect on ingredients in groupings.

The percentage by which the object is maintained is displayed below the table.

The detail view shows the complete ingredient tree with the absolute proportional shares.

The raw view shows the complete ingredient tree with the absolute proportional shares in JSON format.

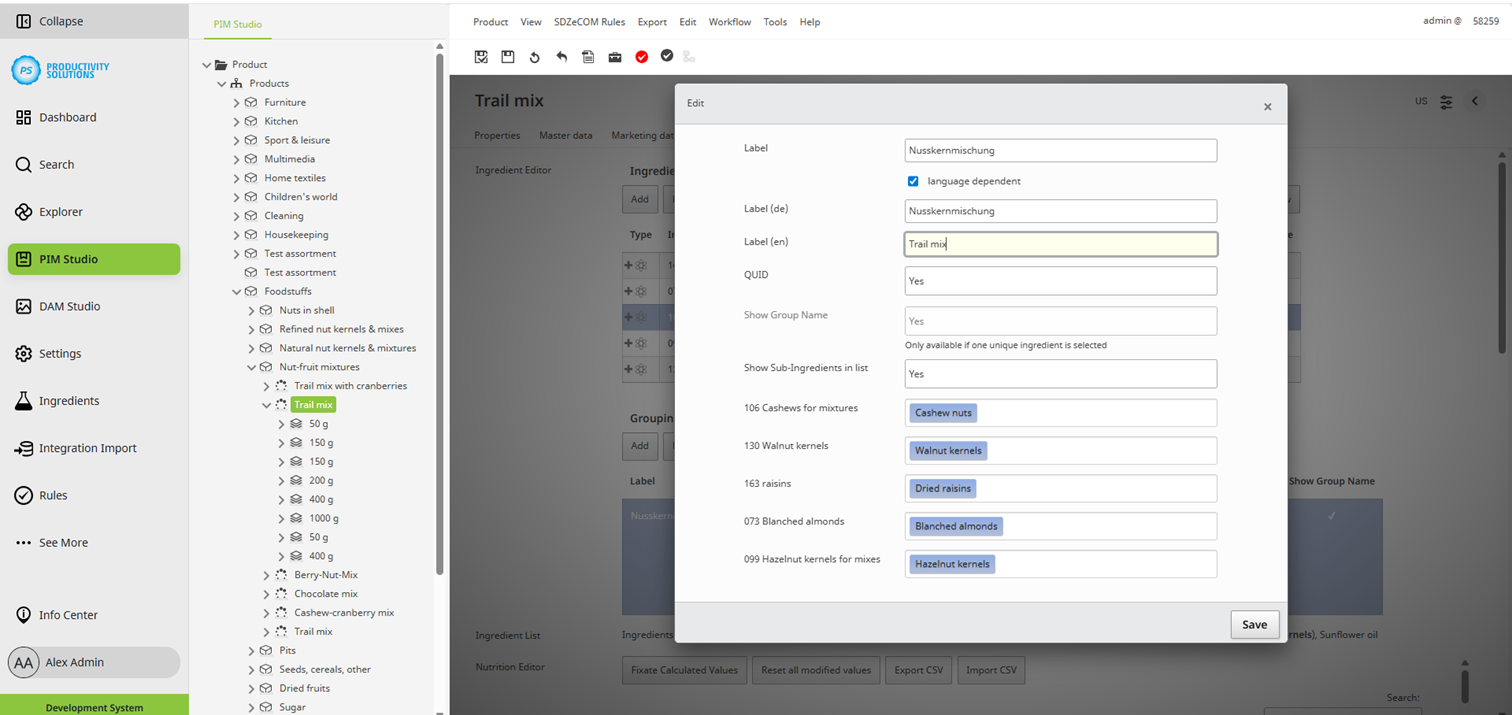

Ingredients/semi-finished goods can be grouped as required using ingredient groups.

Field	Description
Label	Give the grouping a name.
QUID	Decide whether the percentage of the ingredient is to be displayed in the ingredient list.
Show Group Name	The group name can only be displayed if only one unique ingredient is selected.
Show Sub-Ingredients in list	Decide whether the ingredient/semi-finished good is to be displayed in the ingredient list.
Name of the semi-finished good	The name of the semi-finished product is automatically displayed as the field name. Select the ingredients of the semi-finished product that you want to display.
