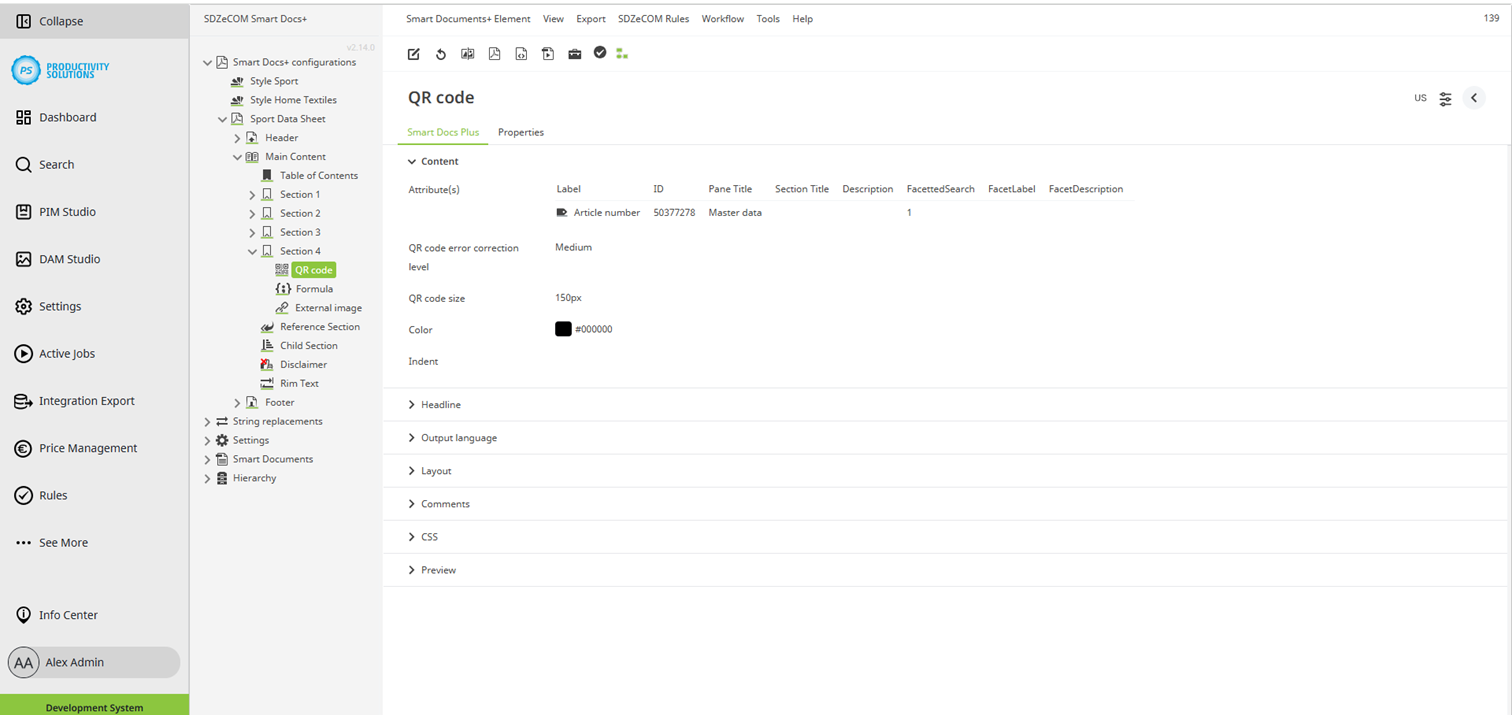

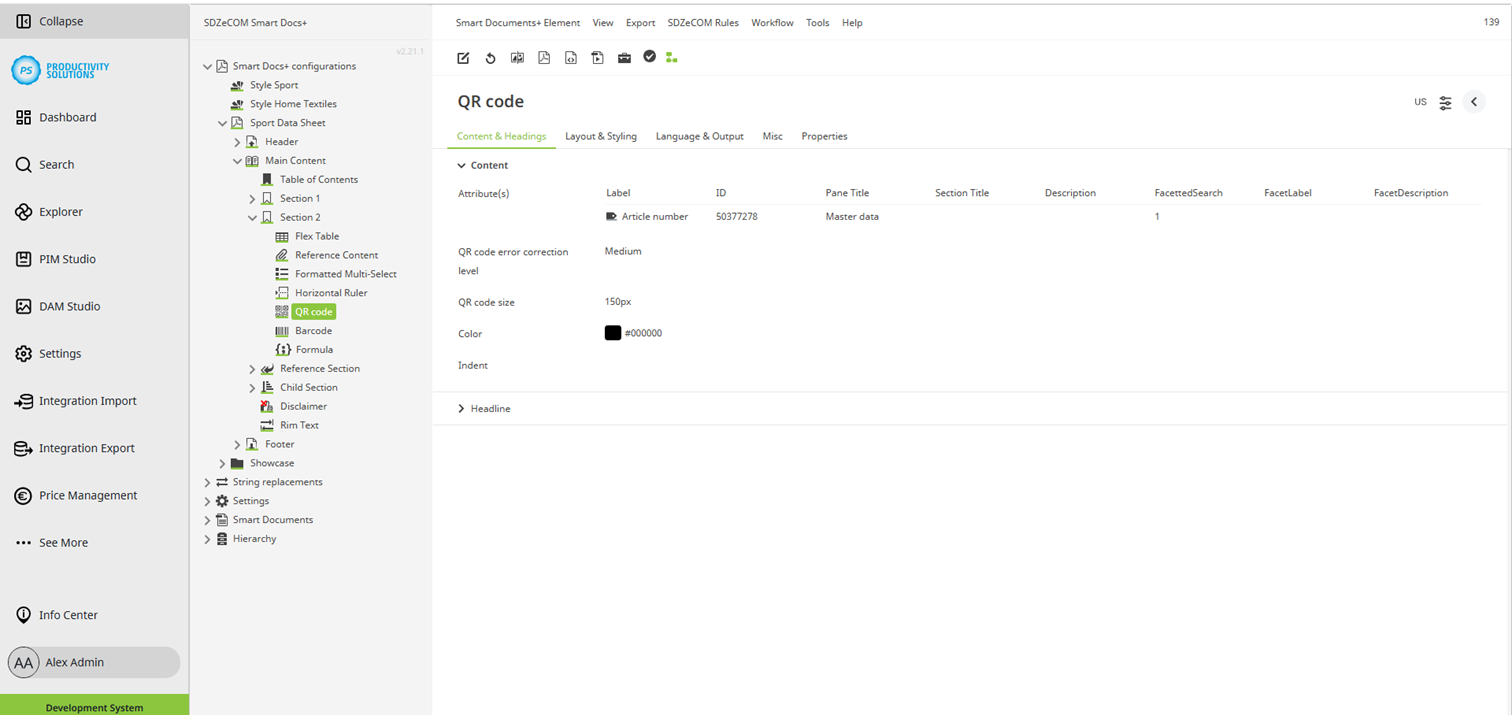

Smart Docs+ | Configuration options | QR code

Configurable for the following object types:

Field	Description
Attributes	Select the attributes that contain the information for the QR code.
QR code error correction level	Define the desired error correction. Error correction in QR codes is a built-in feature that allows the code to be read even if it is damaged, such as scratches, stains, or missing parts. Low (Level L): Can recover up to 7% of code damage. The code is the smallest and fastest to scan. Medium (Level M): Offers a recovery capacity of up to 15%. This is the default level for many QR code generators and offers a good compromise between size and protection. Quartile (Level Q): Allows up to 25% of code damage to be recovered. This level offers high resilience, which is particularly suitable for physical use and outdoor applications. High (Level H (High)): Offers the highest durability with recovery of up to 30% of code damage. This is essential if the QR code contains logos or designs, or if heavy wear and tear or partial coverage is to be expected.
QR code size	Define the size of the QR code with unit. Enter only one value. The QR code will be automatically created with the same width and height.
Color	Use the color configurator to select the color for your QR code.
